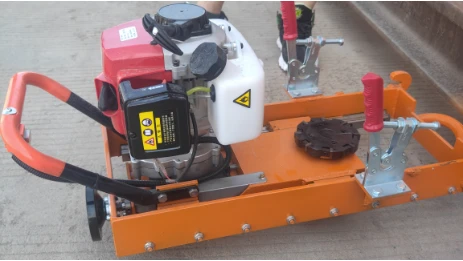

Internal Combustion Rail Bottom Weld Bead Grinding Machine
The rail bottom weld bead grinding machine is a special small machine designed for railway and rail transit engineering departments to remove the rail bottom weld bead after welding the rail and pushing the knob. It can remove the rail bottom weld bead margin with high quality and efficiency to achieve the purpose of trimming the weld bead. the goal of.
- Product Introduction
1.Scope of application
The rail bottom weld bead grinding machine is a special small machine designed for railway and rail transit engineering departments to remove the rail bottom weld bead after welding the rail and pushing the knob. It can remove the rail bottom weld bead margin with high quality and efficiency to achieve the purpose of trimming the weld bead. the goal of.
2.Technical Parameters
This machine is powered by a gasoline engine. It is suitable for use in ventilated areas in the factory and in outdoor operations. It has strong adaptability to the environment. Environmental conditions:
Temperature: -40℃~+50℃, humidity RH (10%~98%), altitude: ≥5000m.
1.Gasoline engine type: Two-stroke gasoline engine
2.Gasoline engine power: 2.4 KW
3.Gasoline engine speed: 7000r/min
4. Milling cutter speed: 190-254rad/min
5. Milling cutter specifications: 100x3x16mm
6. Number of teeth of milling cutter: 8
7. Milling blade model and material 4160511
8. Overall dimensions: length x width x height: 680x360x350mm
9. Total mass 30kg±2kg
3.Technical features

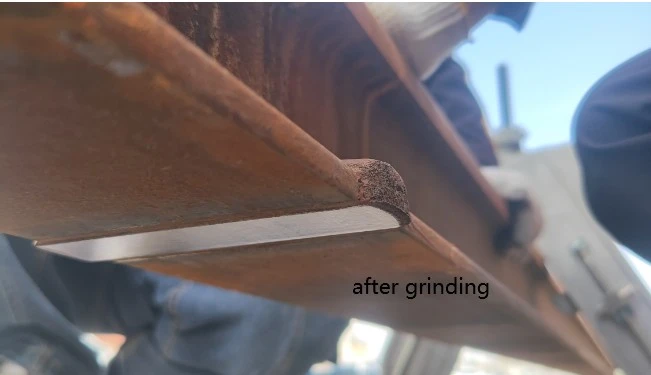

1. The product adapts to the narrow space at the bottom of the rail bottom, replacing manual grinding methods and improving grinding efficiency and quality.
2. The product uses milling instead of grinding for trimming, which can quickly remove the rail bottom push knob and has high operating efficiency.
3. The working mode of one-time positioning and one-time cutting is adopted, with accurate positioning, reliable clamping and easy disassembly.
4. The milling blade has a long service life, and each set of cutterheads can complete the cleaning operation of 20 welding passes.
If you want to know more details information, please contact me! I will show you more details.
