NGM-4.8 Digital Display Rail Grinding Machine

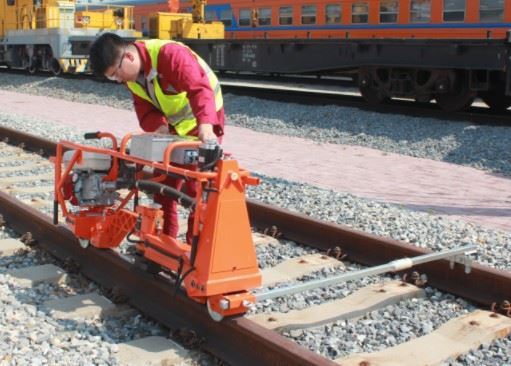

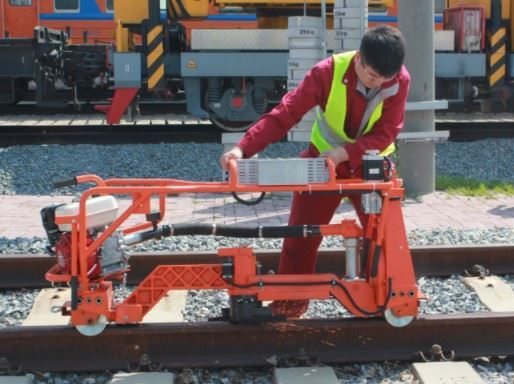

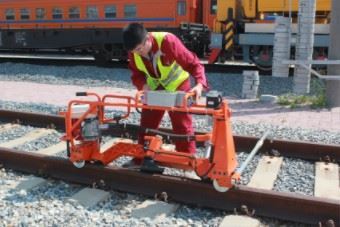

NGM-4.8 digital display rail grinding machine is suitable for grinding 43kg/m-75kg/m rail weld, uneven joint, rail side fat edge, rail surface welding repair and other parts. With a multi-purpose, automation and intelligent set as one of the high-precision rail grinding machine.

Send Inquiry

Product Introduction

Functions

1. The machine adopts single chip microcomputer controller, simple operation, digital display feed and rotation angle, with the characteristics of accurate control, high grinding accuracy.

2. The feeding device is driven by stepper motor, with the characteristics of digital display of feed rate, accurate control, adjustable feed precision and high grinding precision.

3. The angle control device is driven by stepper motor, with digital display of rotation angle, adjustable rotation accuracy and precise control. It changes the previous manual rotation operation mode, reduces the labor intensity of workers, and improves the operation efficiency and standardized grinding.

4. The power supply of the whole machine adopts the lifelong maintenance free power supply, which has the characteristics of lifelong maintenance free, fast charging speed, strong large current discharge ability, high energy conversion efficiency, small process loss, high power density, good ultra-low temperature characteristics, long cycle life, no charging memory effect, etc.

5. The machine is equipped with one key reset function. After grinding, the feed and rotating beam are reset to the initial state. The operation is simple and the operation efficiency is improved.

6. The machine can grind both sides of the rail ± 90 ° with large inclination angle.

7. With the advantages of high precision, high precision and high efficiency in grinding operation, good grinding quality, simple operation and convenient access, it is a necessary tool for railway maintenance overhaul, maintenance and emergency repair.

Specification

1. Gasoline engine:Model: GX200

RPM: ≥3600r/min

Power: 3.7kW

2. Grinding stone: φ125×65×M20 Linear speed: ≥35m/s

3. Shaft RPM: 4400r/min

4. Tilting angle: ±90°

5. Grinding stone stroke: 45mm

6. Feeding accuracy: 0.01mm/0.1mm/0.15mm

0.2mm/0.25mm/0.3mm

7. Wheel distance: 1000mm

8. Weight: 98kg

9. Dimension: 1650×580×750mm

Basic structure

1. Basic structure:

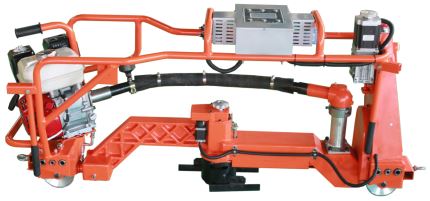

The structure of the machine is shown in the figure, which is mainly composed of single chip microcomputer control part, power part, transmission part, feed part, deflection control part, auxiliary part and grinding wheel.

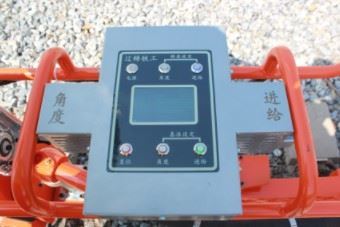

1. The control part of single chip microcomputer includes control motherboard, driver, display, power supply system, control switch, rectification system and voltage stabilizing system, which is used to accurately control grinding feed precision and angle.

2. The power part includes gasoline engine, gasoline engine frame, emergency switch button, etc., which is used to provide power for the equipment.

3. The transmission part consists of flexible shaft, bevel gear box, support, beam and belt, which is used for power input to grinding wheel.

4. The feed part is composed of grinding wheel, feed motor, manual feed hand wheel and feed button, which is used to realize the feed grinding of grinding wheel.

5. The deflection control part is composed of adjusting frame, angle motor, deflection handwheel, sprocket tensioning device, etc., which is used to realize the lateral grinding of grinding wheel.

6. The auxiliary part is composed of gasoline engine armrest, connecting frame, support components and grinding wheel protection cover, which is used for some safety auxiliary of the whole machine.

The basic structure is shown in the figure:

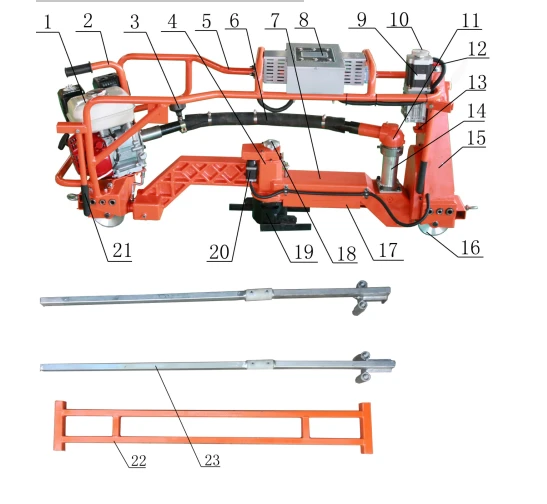

1. Gasoline engine 2, Gasoline engine armrest 3, Flexible shaft oil cup 4, Feed mechanism 5. Connecting frame 6, Flexible shaft 7, Beam 8, Control box 9, Angle stepping motor 10, Deflection hand wheel 11, Bevel gear box 12, Emergency switch button 13, Sprocket locking device 14, Support 15, Adjusting frame 16, Running wheel 17, Belt cover 18, Glove dynamic feed hand wheel 19, Grinding wheel and grinding wheel cover 20, Feed motor 21, Handle 22. Connecting handle 23. Auxiliary support assembly
