Flexible Shaft Rail Tamping Machine
ND-4.2×4 flexible shaft rail tamping machine is suitable for any track line maintenance and ballast tamping operation. It is characterized by light weight and easy operation
- Product Introduction
Flexible Shaft Rail Tamping Machine
Model: ND-4.2×4
Are you still worried about the low efficiency and bad tamping effect of tamping ballast in the line bed? The traditional machine lifting speed is slow, and the working effect is not good, it is really a problem that makes people worry. But don't worry, there is our Liaoning Engineering Services, we Liaoning Engineering Services in order to users have a better experience, collection of domestic and foreign users of tamping machine experience in the use of new materials, the use of new technologies, the development of the ND-4.2 * 4 large flexible shaft tamping machine, from the railroad workers no longer need to worry about the tamping work is more convenient and speed up the speed!
1. Scope of Application
ND-4.2×4 flexible shaft rail tamping machine is suitable for any track line maintenance and ballast tamping operation. It is characterized by light weight and easy operation. Tamping has the advantages of good quality, low failure rate, convenient maintenance, quick on or off track speed and strong applicability. It can do tamping operation not only for standard lines, but also for turnouts. The machine is cost effective and very suitable for the needs of railway ballast tamping operation.
2. Main Technical Parameters
1. Gasoline engine: GX390 (single power)
2. Gasoline engine power: 9.5KW (single power)
3. Speed of engine: 3600r / min
4. Vibration times: 3000 times / min
5. Amplitude: 1.2mm
6. Machine weight: 120 kg
3. Basic Structure and Working Principle
Working Principle: ND4.2 × 4 Flexible shaft rail tamping machine is powered by Honda gasoline engine. The main shaft of tamping pick is driven by triangle belt to transfer the power to the vibrating body, so that tamping operation can be realized.

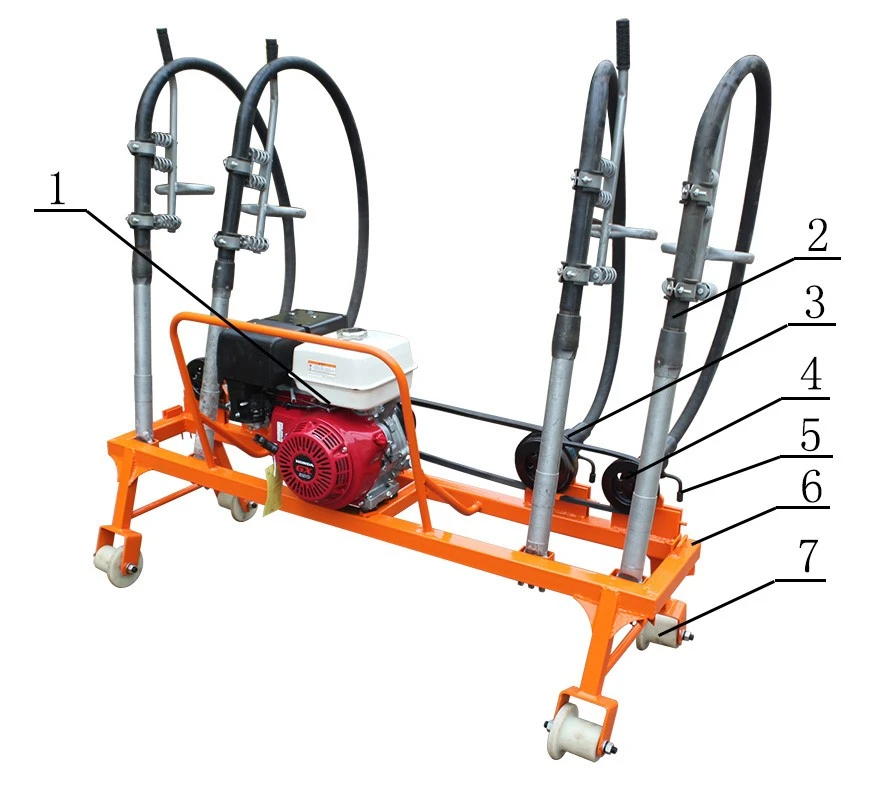

Basic Structure: 1 Gasoline engine, 2 Vibrator, 3 Flexible shaft fixing device, 4 Belt pulley, 5 Locking handle, 6 Underframe, 7 Walking Wheel
