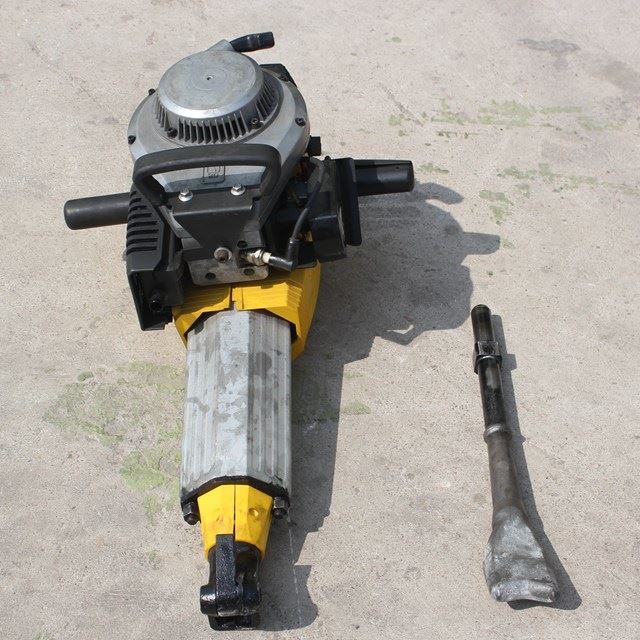

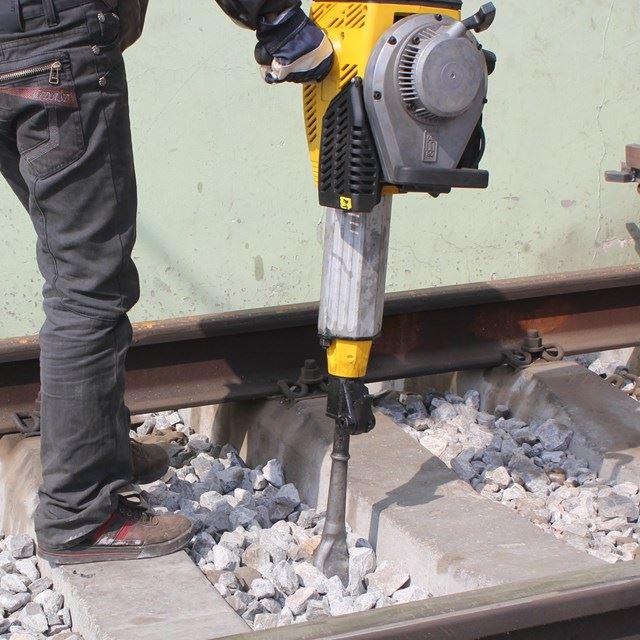

SND-23 Portable Petrol Engine Rail Tamper
SND-23 Portable Petrol Engine Rail Tamper with 2 stroke gasoline engine for tamping all kinds of sleepers with ballast or gravel, high level of compaction.
- Product Introduction

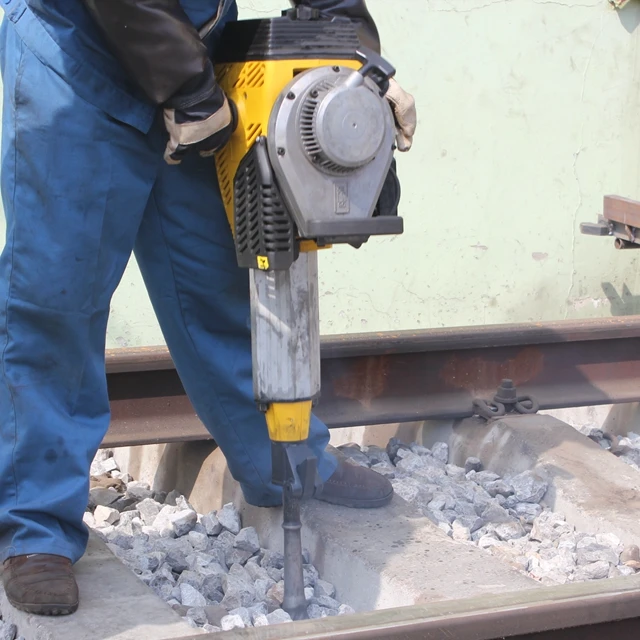

SND-23 portable impact rail tamper
Product preview
SND-23 Portable Petrol Engine Rail Tamper with 2 stroke gasoline engines for tamping all kinds of sleepers with ballast or gravel, high level of compaction.
Specification
Overall Size(L×W×H) | 450×340×790 mm |
Engine Model | 1E45F-3A |
Engine Type | Single cylinder, air cooling, two stroke |
Displacement (m1) | 80 |
Output Power (kW/r/min) | 1.6/4400 |
Oil Consumption (g/kW.h) | ≤544 |
Net Weight (kg) | 24 |
Impact Frequency（Hz） | 22 |
Impact Energy (J) | 40 |
Clutch Speed (r／min) | 2900±350 |
Idling (r／min) | 2300±230 |
Working Speed (r／min) | 4350±250 |
Fuel | Volume mixing ratio of gasoline and FC grade two stroke engine oil (25～30):1 |
Tank Volume (L) | 2.4 |
Impact system grease | 3# Lithium base grease with extreme pressure |
Contact
Overall Size(L×W×H) | 450×340×790 mm |
Engine Model | 1E45F-3A |
Engine Type | Single cylinder, air cooling, two stroke |
Displacement (m1) | 80 |
Output Power (kW/r/min) | 1.6/4400 |
Oil Consumption (g/kW.h) | ≤544 |
Net Weight (kg) | 24 |
Impact Frequency（Hz）
| 22 |
Impact Energy (J) | 40 |
Clutch Speed (r／min) | 2900±350 |
Idling (r／min) | 2300±230 |
Working Speed (r／min) | 4350±250 |
Fuel | Volume mixing ratio of gasoline and FC grade two stroke engine oil (25～30):1 |
Tank Volume (L) | 2.4 |
Impact system grease | 3# Lithium base grease with extreme pressure |
