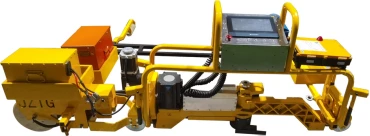

Rail Grinding Robot
It is mainly used for solving the grinding of rail abrasion, spalling off blocks, top surface abrasion, surface cracks, uneven joints, rail side fat edge, rail welding repair, fish scale cracks and basic rail in the turnout area and other diseases. It is a new energy intelligent high-precision grinding machine with the features of multi-purpose, automation and intelligence integration, good grinding quality, and easy to get on and off the road. Translated with DeepL.com (free version)
- Product Introduction
Features are as follows:
1, changed the traditional way of control, to solve the confusion of no grinding fine test operators, as long as the setting of grinding angle, depth and walking distance can be achieved automatically grinding. Save time, save labour, and solve the practical problems of grinding site.
2, the use of PLC control system on the feed, angle and walk precision control and linkage control, easy to operate, reduce the labour intensity of workers to meet the high standard of high-speed railway maintenance needs;
3,Automatic travelling control system is divided into manual and single/double sensor control mode to solve different operation situations.
4, the diversity of machine control, to achieve manual, wireless remote control and remote mobile phone or computer network control, and to achieve manual, semi-automatic and fully automatic sanding function of arbitrary switching to control to improve operational safety and comfort;
5,Diversification of grinding functions, the perfect solution to the rail contour grinding and long-distance fat edge grinding and line and turnout area of the disease grinding, in order to achieve a multi-purpose machine, high integration, reduce maintenance costs, that is, improve the labour intensity of the workers and effective control of the grinding precision, to the work of the transport brings great convenience.
6, with over-grinding function, when the grinding depth is set, the grinding depth can be protected, no matter how to feed, the spindle feed does not work, that is, to protect the rail.
7, with a key reset function, in the operation of the end of the sanding, just press the reset button, the angle and feed can be returned to the base point, its operation is simple, improve operational efficiency, high degree of automation.
8,The power source adopts two new energy lithium batteries to drive separately, which prolongs the duration of the grinding operation, with long life and stable output.
Technical Parameters
1, motor voltage: ≥ DC48V
2, motor power: ≥ 3kW
3, spindle no-load speed: ≥ 3000r/min
4, grinding wheel specifications: φ125 × 65 × M20
Grinding wheel line speed: 35m/s
5, grinding head stroke: 45mm
6, profiling wheel distance: 1000mm
7,Main machine quality: 89kg
8,Outside dimensions: 2010×430×880mm
9, other accessories weight: 110kg (auxiliary support 11kg * 2, walking 15kg, auxiliary frame 10kg, battery 32kg * 2).
Translated with DeepL.com (free version)
