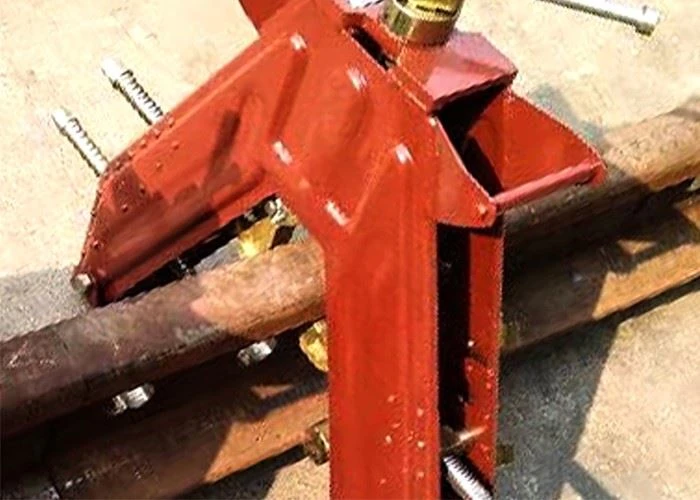

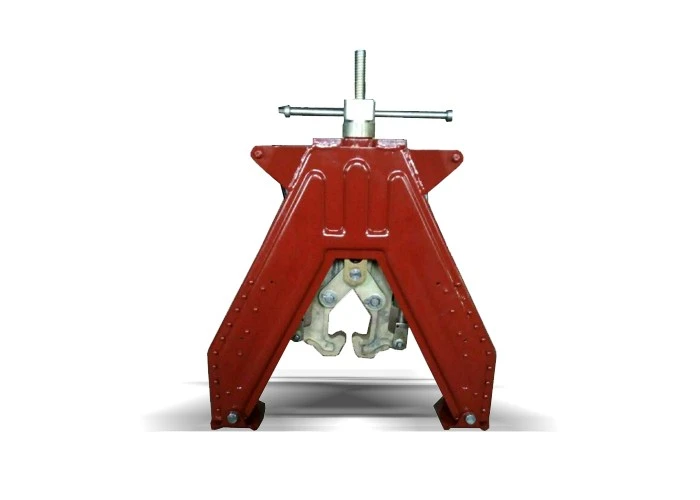

For Track Maintenance Tool- Rail Aligiment Frame

rail to rail frame, is based on the majority of road maintenance operations of the actual needs of customers and design and development of a new tool. The machine is beautiful in appearance, superior in performance, reasonable in structure, reliable in quality, time and effort saving, good in performance and price ratio, suitable for all kinds of rail adjustment, is the necessary tool for adjusting the position of rails when aluminum heat welding.
Technical parameters
1、Maximum lifting rail force: 15kN
2、Pan: 460mm
3、Quality of the machine: 21kg
4、Outline size: 600×540×170
 Use:
1, check each fastening parts and joint parts before use whether there is loose and detached phenomenon.
2, in the need to weld the side of the rail joint, loosen 4 or 5 rail sleepers on the fasteners.

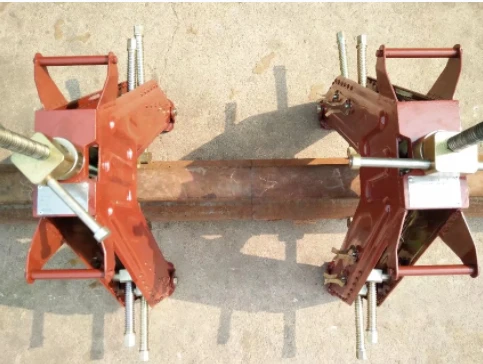

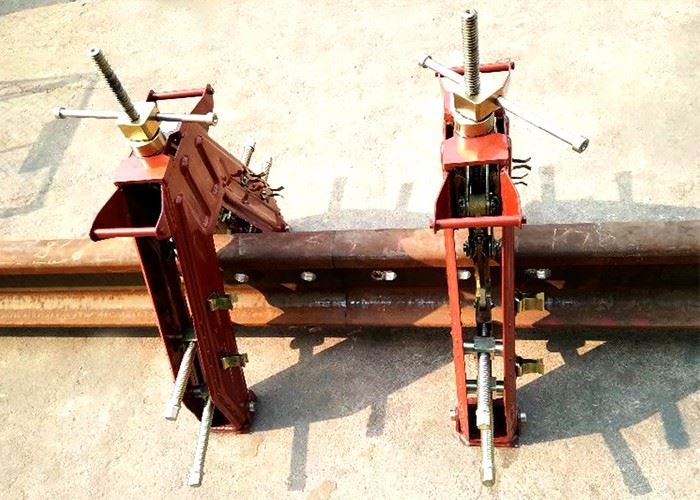

3, in the rail joint on the side of the 2nd or 3rd rail sleeper placed on a pair of positive frame (specific location depending on the work needs) adjust the adjustment rod, so that the lifting rail hook hanging rail can be adjusted as follows (adjustment must be balanced distribution of each rail each half)
a, the level point adjustment:
By turning the trigger bar to drive the lifting rod to move for the adjustment of the level point.
b, the adjustment of the rail head to straight:
According to the direction of movement, through the side screw to the rail head for the corresponding adjustment (such as the need should be the relative side screw loosening). To carry out the adjustment of the rail head.
c. Tilt adjustment
Side screw and long side screw placed in the right position, when it is tightened, it can be adjusted according to the need to flip, at the same time need to adjust the side screw on the opposite side to keep the top of the rail in a straight line.
Caution:
Please do not force the adjusting screw; if you do need to force, it means that the rail fastening mechanism is not loose or the relative screw is locked.
Second, maintenance:
After several uses or storage, the bearing below the lifting adjusting rod nut and other joint parts must be filled with molybdenum disulphide grease.
