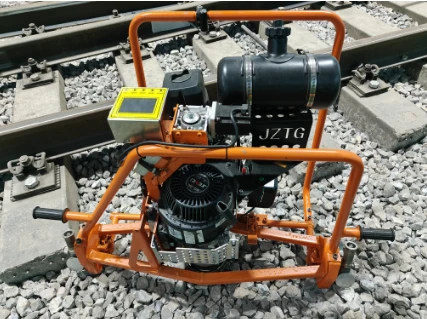

Internal Combustion Switch Wing Rail Grinder
It is mainly used to polish the side fat edges, cambered surfaces and profiles of switch wing rails and various types of rails. Microcomputer is used to precisely control the feed. It is also equipped with digital display feed value and real-time display feed value, button control feed mode, night lighting function, easy operation, precise control, humanized operation, superior performance and reasonable structure. , reliable quality is an essential tool for the public works department to repair lines.
- Product Introduction
1.Scope of application
It is mainly used to polish the side fat edges, cambered surfaces and profiles of switch wing rails and various types of rails. Microcomputer is used to precisely control the feed. It is also equipped with digital display feed value and real-time display feed value, button control feed mode, night lighting function, easy operation, precise control, humanized operation, superior performance and reasonable structure. , reliable quality is an essential tool for the public works department to repair lines.
2. Main technical parameters
1. Gasoline engine model: SC230/four-stroke
2. Gasoline engine power: 4.5kW
3. Spindle no-load speed: ≥3600r/min
4. Nut fastening grinding wheel: Φ125×65×M20
Grinding wheel linear speed: 35m/s
5. Effective stroke of grinding wheel: ≥45mm
6. The maximum swing angle of the grinding wheel in both directions: 25°⁓-90°
7. Feed accuracy: 0.01mm
8. Overall machine mass: 63kg
9. Overall dimensions (length × width × height): 1050 × 570 × 820mm
Basic structure and working principle
Working principle: The gasoline engine is driven by a clutch and a belt to cause the main shaft (grinding wheel) to rotate. The microcomputer controls the stepper motor to rotate the screw and drive the nut to rise and fall through the slide rail to achieve vertical feed grinding movement.
There are copying wheels and auxiliary wheels on both sides of the machine to assist in grinding under different working conditions. At the same time, the small frame is equipped with lights so that all-weather operations will not be affected.
basic structure:

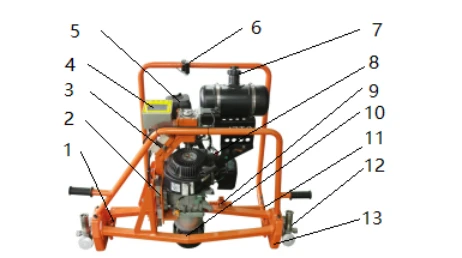

1. Operating handle limit 2. Slide rail 3. 24V lithium battery 4. Control box 5. Gasoline engine air filter 6. Lift button 7. Fuel tank (refill pure gasoline above 90#) 8. Gasoline engine 9. Operating handle lock Tightening pedal 10, grinding wheel 11, operating handle 12, auxiliary limit wheel 13, frame
