Rail Cutting Machine (abrasive rail cutter)

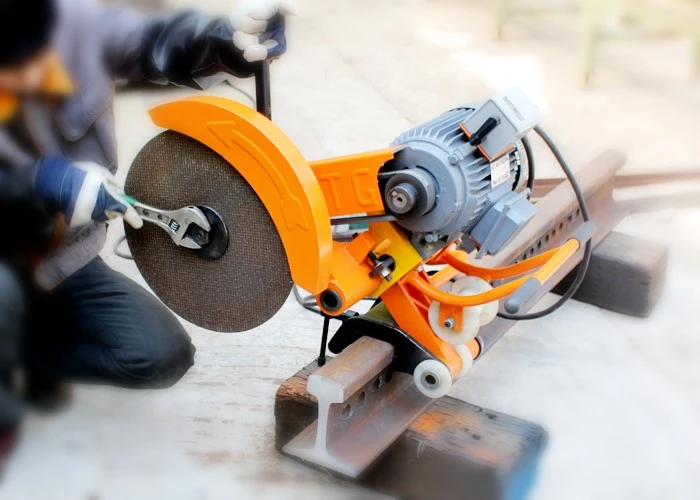

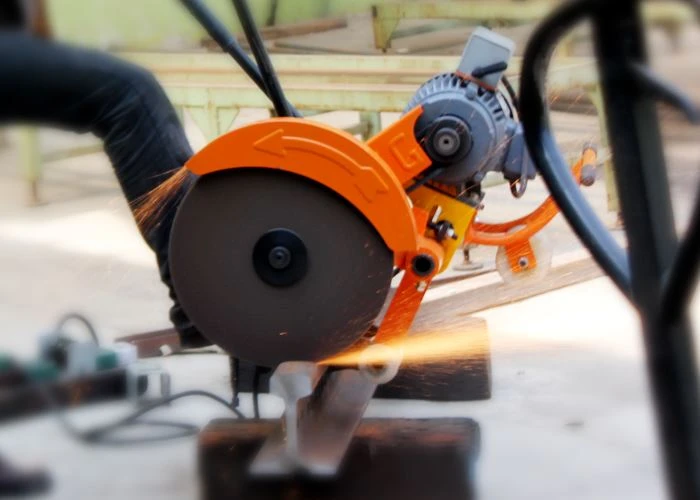

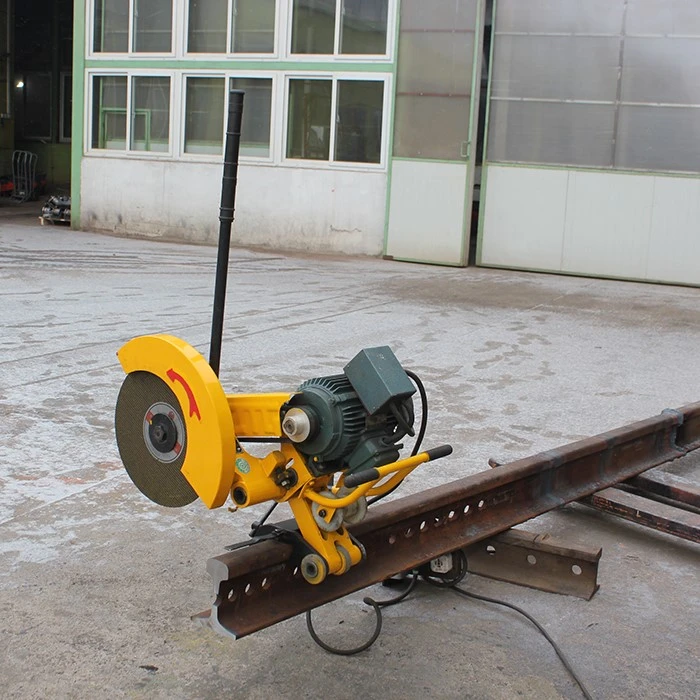

QG-3II electric rail cutting machine also known as abrasive rail cutter/abrasive rail cutter machine/honda rail cutting machine/rail disc cutter machine/rail track cutting machine/railway cutting machine/rail track cutting machine/abrasive rail saw is a professional track equipment used for cutting and trimming rails. It is characterized by efficiency, precision, safety, and is suitable for trimming various track models. The equipment consists of a motor, a transmission system, a cutting tool and a control device, and can meet the cutting and trimming requirements of various track systems such as railways and urban rail transit.

In terms of advantages, the first is efficiency. The electric rail cutting machine can complete the rail cutting work quickly and efficiently, greatly improving the operating efficiency. Secondly, it is highly accurate and can be finely adjusted and cut according to the user's requirements to achieve higher trimming quality. Finally, it is safe and reliable and equipped with protective devices, which can effectively reduce the probability of accidents during operation and ensure the safety of personnel.

In terms of scope of application, electric rail cutting machines are suitable for various types and specifications of railways maintenance and urban rail transit systems, and can be used for track trimming. It is not only suitable for domestic railways and urban rail transit systems, but also for foreign railways and urban rail transit systems.

In short, the electric rail cutting machine is an efficient, accurate and safe professional track equipment, suitable for various types and specifications of railways and urban rail transit systems, with a wide range of application and superior performance.









Our Advantages:





Main Technical Parameters

1. Electric motor:

Power: 3.0 kW

Speed: 2850r / min with cast aluminum cover

(Speed: 2870r/min with cast iron cover)

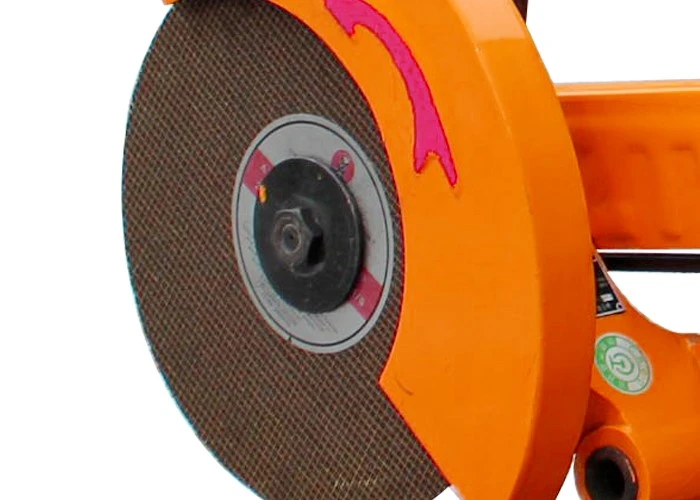

2. Thin grinding wheel (spindle):

1) Spindle speed: 3060r/min (3080r/min)

2) Specification: Φ 400 × 4 × Φ 32mm

3) Linear velocity ≥ 70s/m (80s/m recommended)

3. Cutting time: ≤ 120S for 60kg/m rail

4. Number of usage: ≥ 4 times for 50kg/m rail

≥ 3 times for 60kg/m rail

5. Machine weight: 24kg

Type	Model
Electric Rail Cutting Machine	QG-3II
Electric Rail Cutting Machine	QG-4II
Internal Combustion Rail Cutting Machine	NQG-5III Motor:GX200
Internal Combustion Rail Cutting Machine	NQG-5III Motor:GX270
Rail Cutting Machine	K1270 import 14"
Rail Cutting Machine	K1270 re-equipped
Battery Rail Cutting Machine	LQG-750
