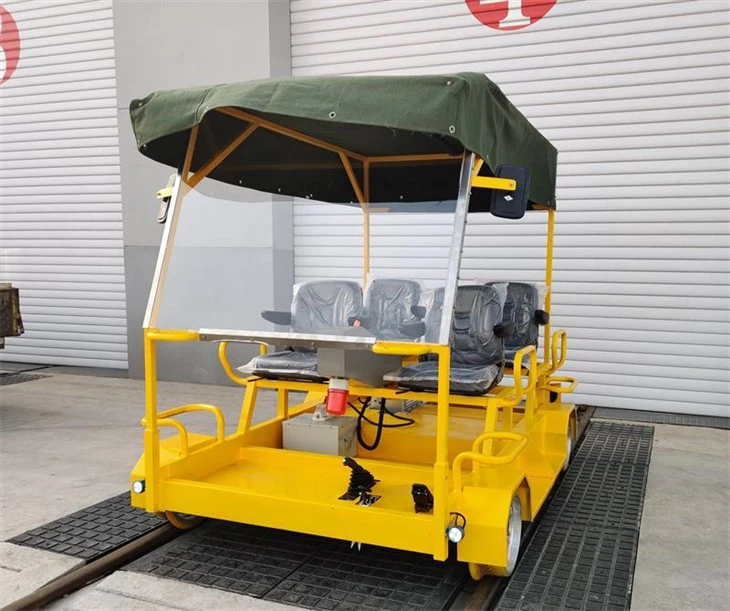

Covered Battery Motorised Rail Track Trolley Rail Inspection Trolley Electric Drive Alumicart

Covered Battery Motorised Rail Track Trolley LPC-4 Rail Inspection Trolley Electric Drive Alumicart is a kind of transport trolley suitable for transporting small tools or transporting people on rails. Its main advantage is that the power source is lithium battery, which has the characteristics of long life, high environmental protection, high stability and so on. The process can significantly reduce noise pollution and improve transportation efficiency.

Lithium battery rail trolley are suitable for 1435mm gauge and must run on blocked tracks (within the skylight point) or on lines without trains. Unlike railway track cars that can run very fast, lithium battery rail trolley are not easy to travel too fast and must strictly control their driving speed. The driving speed cannot exceed 20km/h, please keep this in mind. When driving in curves and switch areas, the driving speed must not exceed 10km/h. This is to avoid danger caused by speeding and bringing safety risks to users.

Lithium battery rail trolley have a wide range of uses and can meet the needs of different industries and improve production efficiency. At the same time, its environmental protection and energy saving are more in line with the needs of the current society, and can effectively reduce noise pollution and protect the environment.

In short, lithium battery rail trolley have the advantages of long life, high efficiency, environmental protection and energy saving. Pay attention to safety during use and strictly control the driving speed to avoid accidents. It is believed that in the future, lithium battery rail trolley will bring more benefits to the railway industry.











Our advantages:







Technical Parameters

1. Speed: ≤ 20Km/h (speeding is not allowed)

2. Motor type: brushless deceleration motor

3. Motor rated output power: 1~1.5kw

4. Rated voltage of motor: 60 V

5. Lithium battery voltage and capacity: 60V/40AH (optional for number of batteries)

6. Charging time: 6～8 hours

7. Output voltage: AC22D±10% V50-60HZ

8. Charging voltage: 60.0 ±0.4

9. Travel distance after one battery charge: ≥ 40km (in winter)

≥ 60km (in summer)

10. Braking distance: 10～15m

11. Loading capacity: ≤ 700kg

12. Trolley weight: ≤ 240kg

13. Overall size: 1700×1700×1000mm
